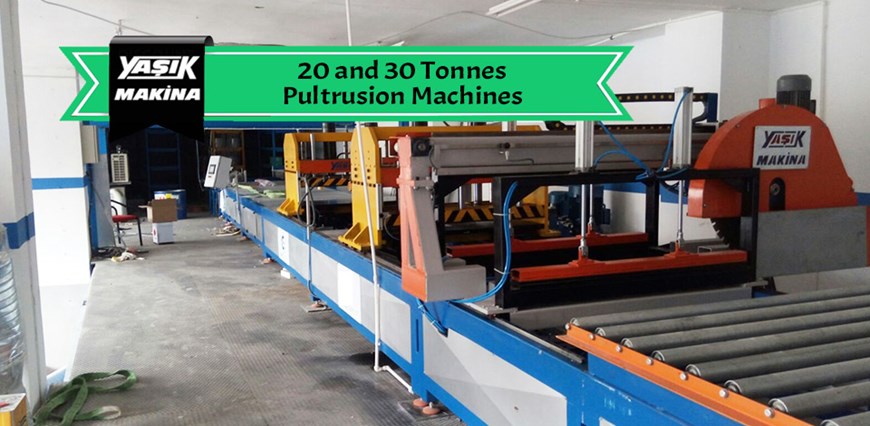

20 and 30 Tonnes Pultrusion Machines

20 and 30 Tonnes Pultrusion Machines

Pultrusion machine Pulling Capacity Pulling Speed(m/min)               Gripper Length(mm) Puller Stroke(mm) clamp platen Cut of Saw (mm) cutting unit control system  Gripper Size(HxW)mm pulling system
PMY- 20 T-800 20 TON 0.5--1.8 650 1000 1 600 otomatik/auto PLC 200x800  hidrolik
PMY- DC-20 T-800 20 TON 0.5--1.8 650 1000 2 600 otomatik/auto PLC 200x400x2 hidrolik
PMY-30 T-1000 30 TON 0.2--1.3 650 1000 1 800 otomatik/auto PLC 250x1000 hidrolik
PMY-DC-30 T-1000 30 TON 0.2--1.3 650 1000 2 800 otomatik/auto PLC 250x500x2 hidrolik
PMY-30 T-1250 30 TON 0.2--1.3 650 1000 1 800 otomatik/auto PLC 250x1250 hidrolik
PMY-DC-30 T-1200 30 TON 0.2--1.2 650 1000 3 800 otomatik/auto PLC 250x400x3 hidrolik

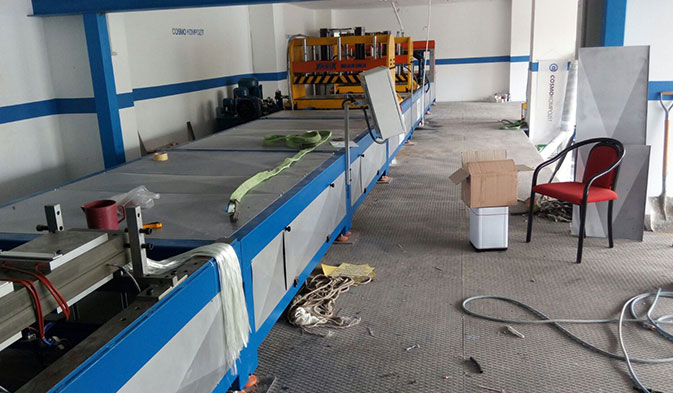

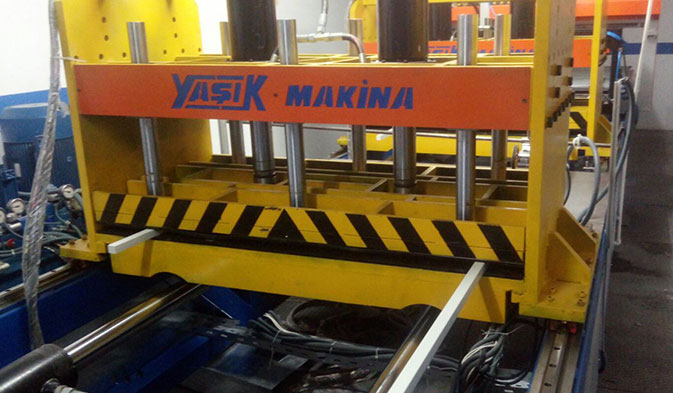

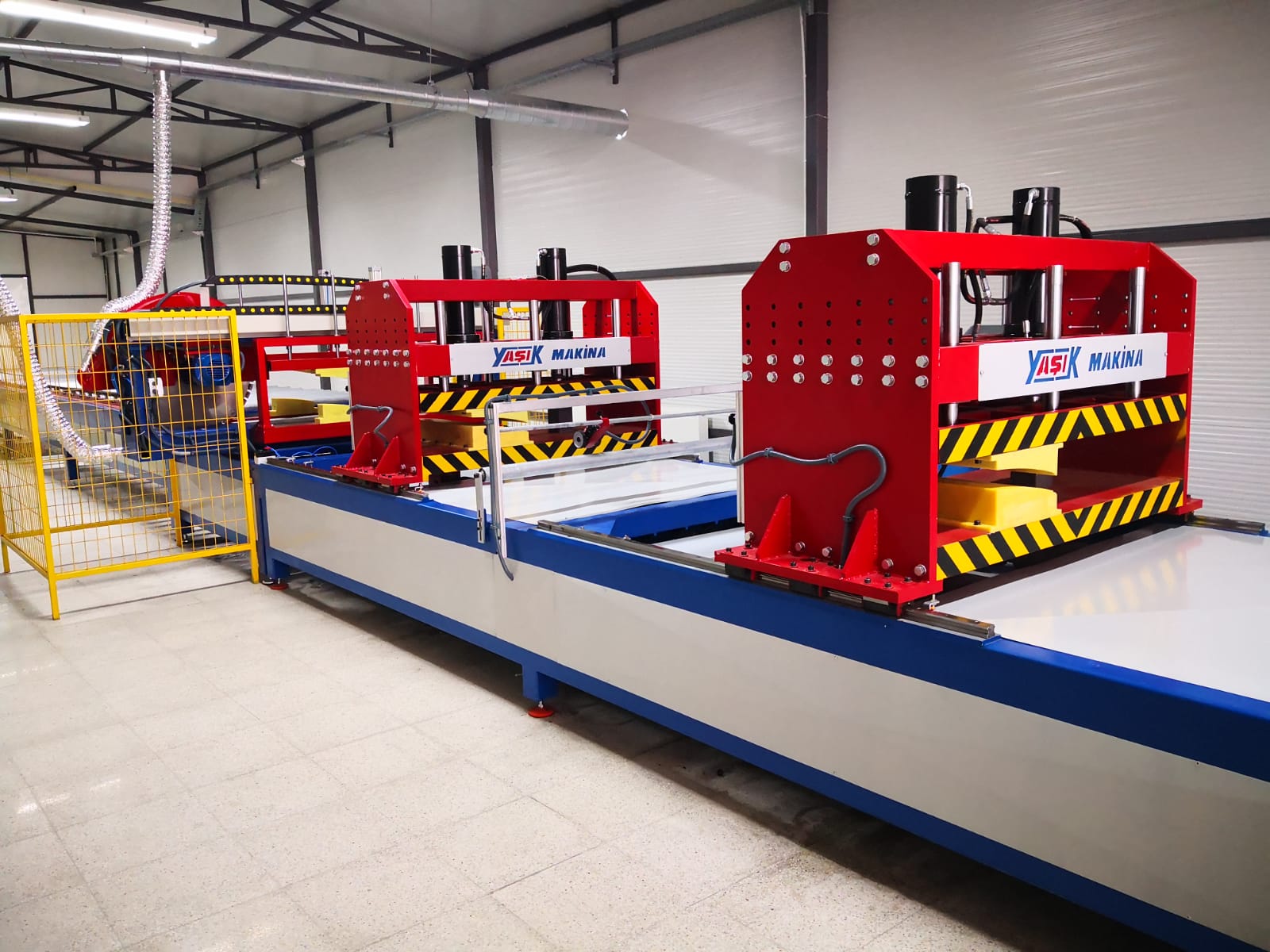

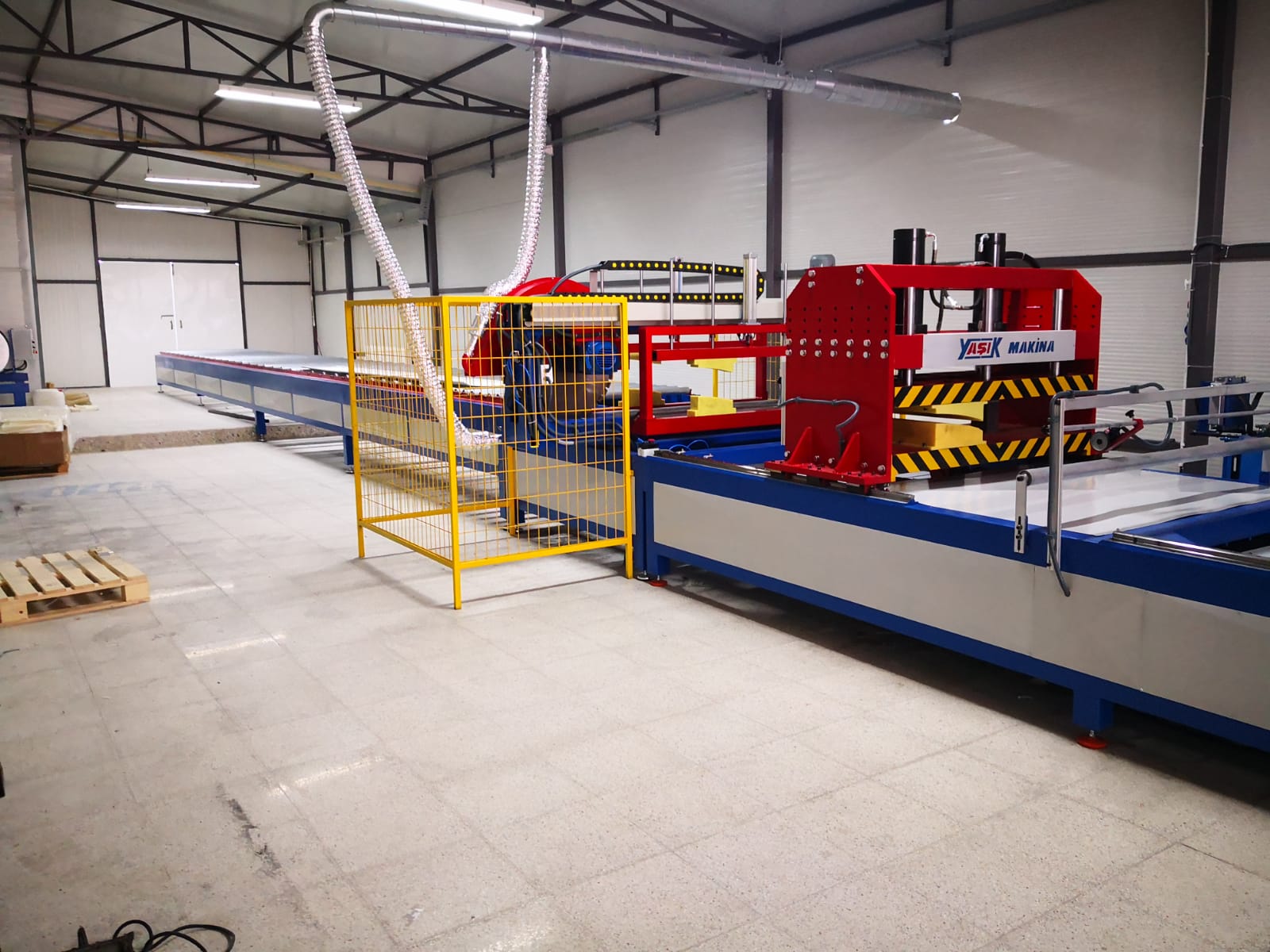

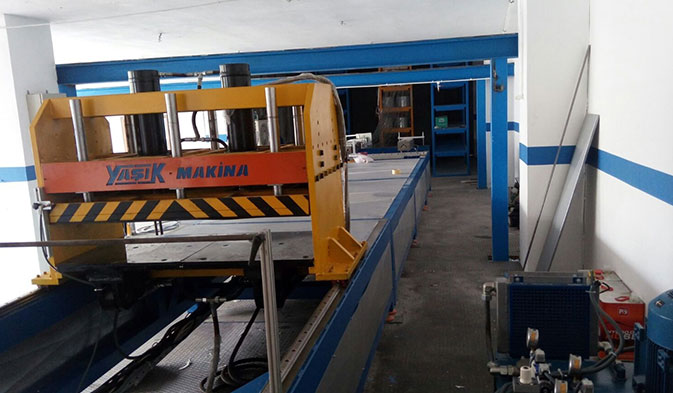

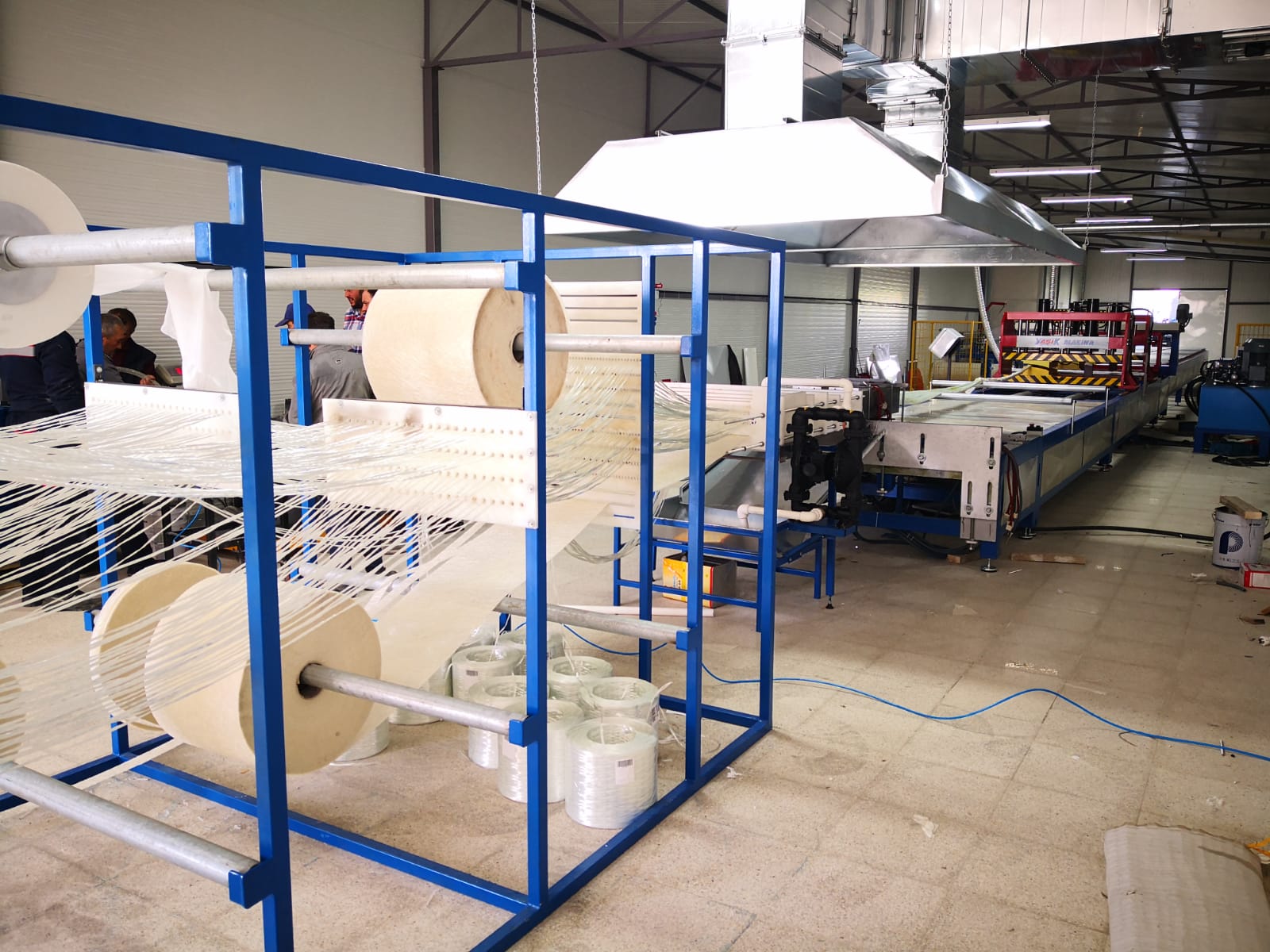

20 ve 30 ton Pultruzyon makinesi 1

20 ve 30 ton Pultruzyon makinesi 2

20 ve 30 ton Pultruzyon makinesi 3

20 ve 30 ton Pultruzyon makinesi 4

20 ve 30 ton Pultruzyon makinesi 5

20 ve 30 ton Pultruzyon makinesi 6

20 ve 30 ton Pultruzyon makinesi 7

20 ve 30 ton Pultruzyon makinesi 8

Contact us for detailed information about Machinery and Spare Parts!
