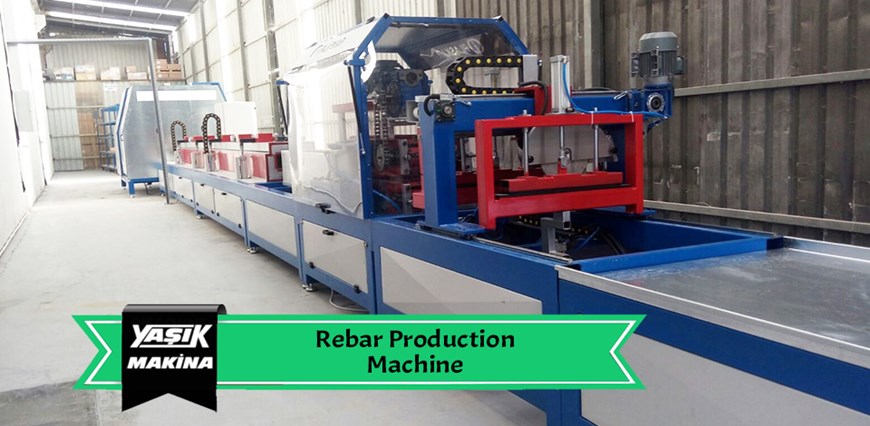

Ribbed Composite Rod Pull Pultrusion Machine

Ribbed Composite Rod Pull Pultrusion Machine

TECHNICIAL SPECIFICATIONS
Materials Used: Polyester + Glass Fiber
Towing Speed: 1m / min. to 5 m / min (adjustable)
Production speed: approx. 3m / min (depending on the resin and formulations used.)
Max. Product number: 2, 3 or 5pcs at the same time can attract capacity
Machine Tunnel temperatures: Control and setpoint values ​​from 4 different zones
Tunnel furnace temperatures: 0 - 220 degrees can be adjusted.
Ribbon winding section: 2, 3 or 5 winding zones, one-stop adjustable speed control.
Aqueous Product cooling system: 0.5 HP Dual water tank with continuous-speed water pump. The water is pumped to the upper tank and the water is continuously circulated.

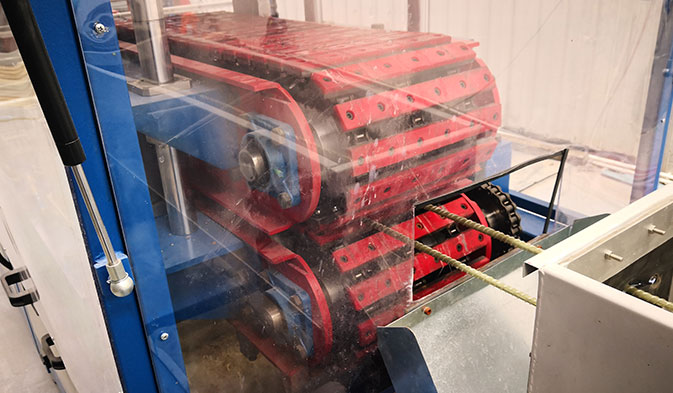

Pulling system: Caterpuller type pulling system With powerful gearbox, the speed can be adjusted from 1m / min to 5m / min. Pneumatic pallets can be opened and closed.
Automatic cutting section: 3 Hp cutting motor with precision encoder measurement system is available. Pneumatic material holding and cutting system is available.

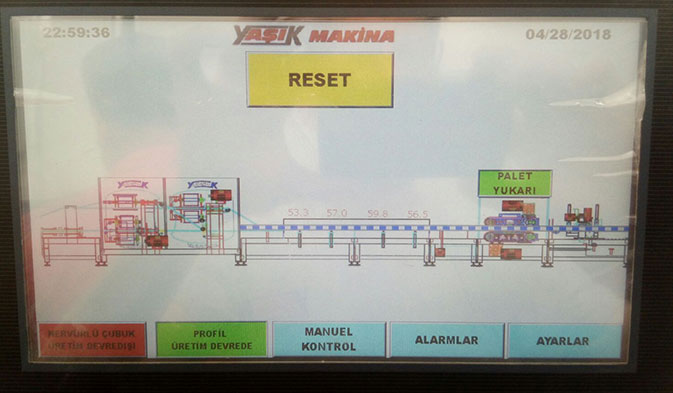

PLC touch screen control system is available.

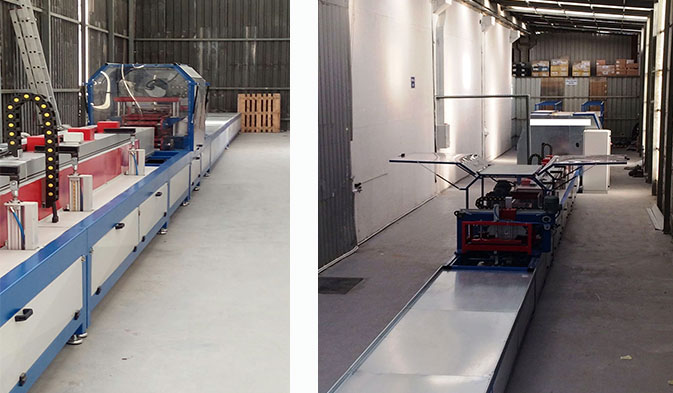

The machine consists of 10 main parts.
1. Fiber preparation

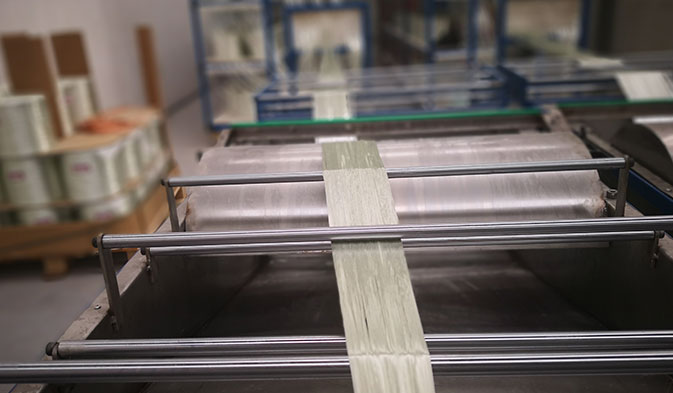

2. Wetting section
3. Orientation and Final shaping section

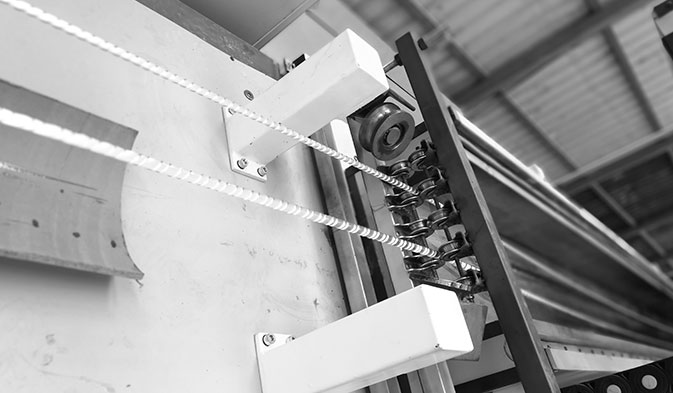

4. Ribbed winding section

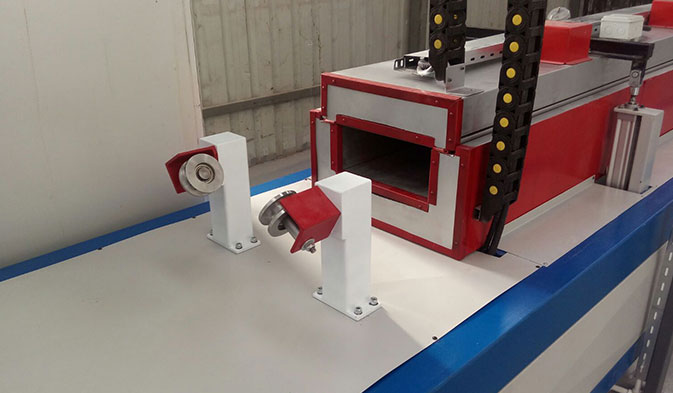

5.Curing heat tunnel

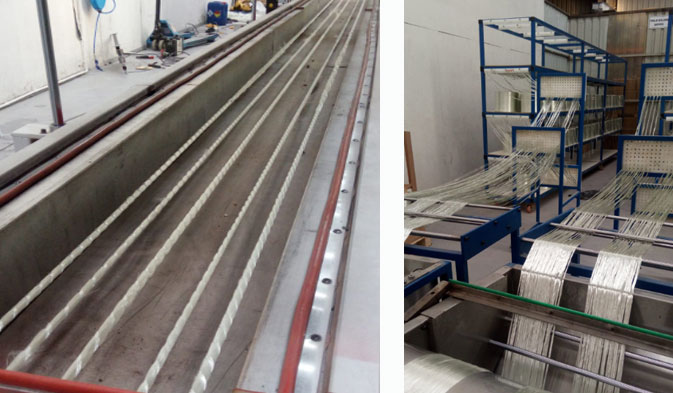

6. Aqueous product cooling system
7. Automatic towing system

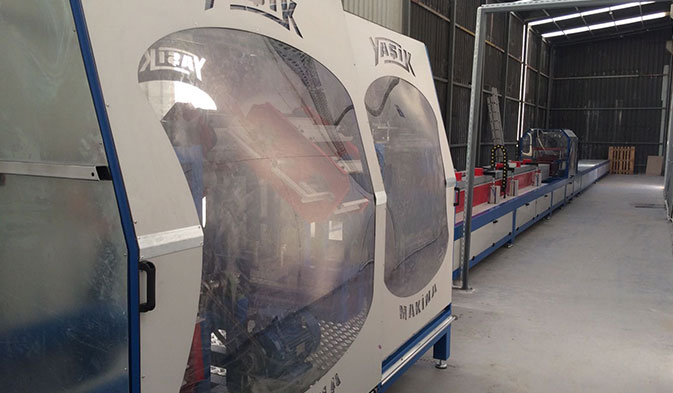

8. Automatic cutting section
9. Material receiving section
10. Control board

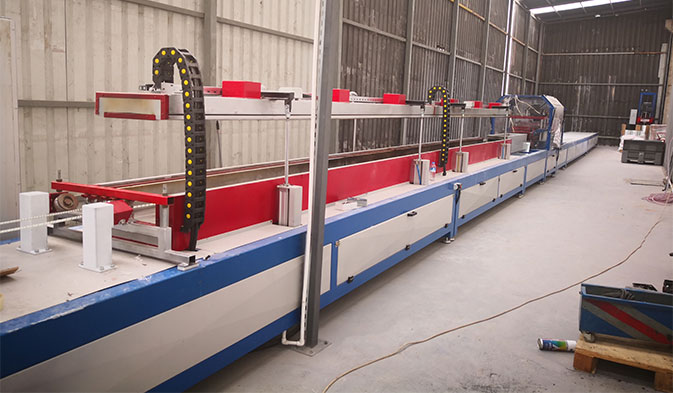

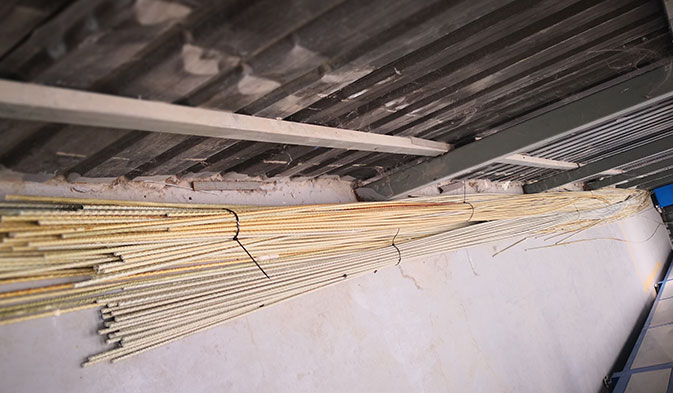

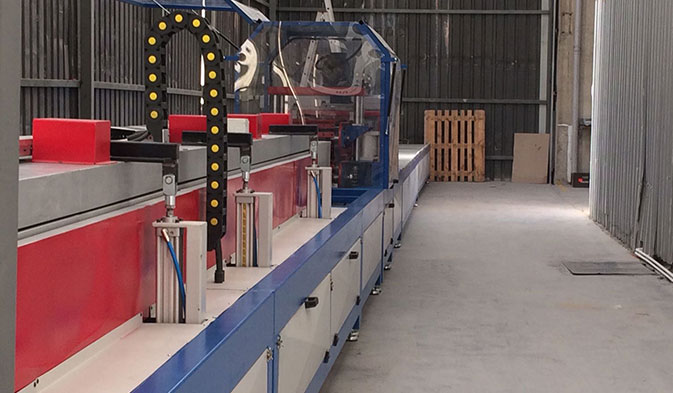

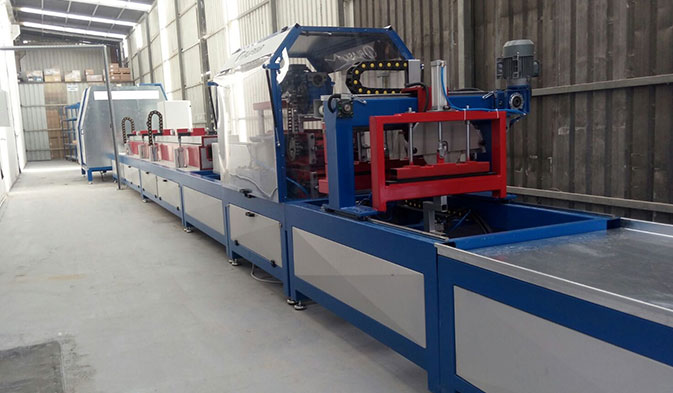

Product Photos

Nervürlü kompozit çubuk kesme makinesi 1

Nervürlü kompozit çubuk kesme makinesi 2

Nervürlü kompozit çubuk kesme makinesi 3

Nervürlü kompozit çubuk kesme makinesi 4

Nervürlü kompozit çubuk kesme makinesi 5

Nervürlü kompozit çubuk kesme makinesi 6

Nervürlü kompozit çubuk kesme makinesi 7

Nervürlü kompozit çubuk kesme makinesi 8

Nervürlü kompozit çubuk kesme makinesi 9

Nervürlü kompozit çubuk kesme makinesi 10

Nervürlü kompozit çubuk kesme makinesi 11

Nervürlü kompozit çubuk kesme makinesi 12
