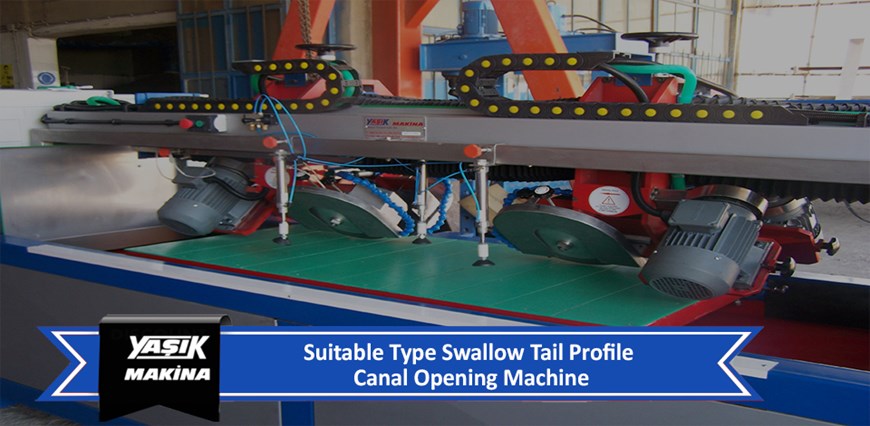

Suitable Type Swallow Tail Profile Canal Opening Machine

Suitable Type Swallow Tail Profile Canal Opening Machine

Suitable type Invisible System clippers (four cutting blades are open at the same time with 4 channels) and the capacity is very high.

Technical specifications

Machine Length: 3400 mm.

Machine Eni: 1100 mm

Machine Height: 1800 mm

Wet Cutting: Closed system minimum water consumption

Capacity: max: 50-55 pcs / h (exterior cladding)

Cutting Dimensions: 60x60 cm 60x120 cm and other intermediate dimensions

Cutting Knife Diameter: 300 mm (with diamond tip)

the feedrate can be adjusted with speed control.

Total Engine Power: 7 kW

Note: The banded system can be made in production if requested.

Note: USEFUL MODEL PATENT LIFE MACHINE'S FIND.

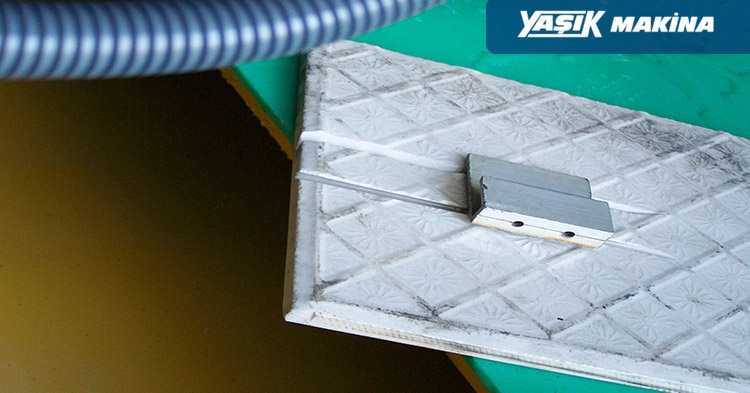

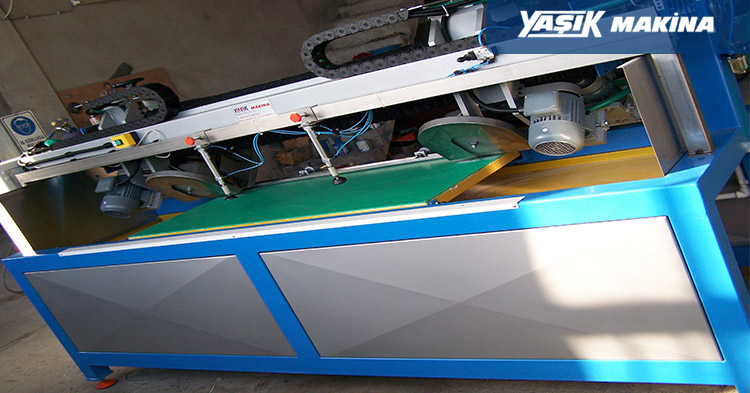

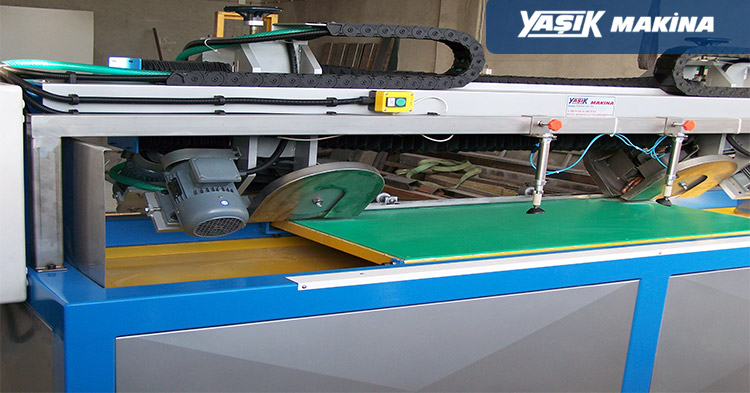

Yaşık Makine Uygun Tip Kırlangıç Kuyruğu kanal açma makinası 1 Yaşık Makine Uygun Tip Kırlangıç Kuyruğu kanal açma makinası 2 Yaşık Makine Uygun Tip Kırlangıç Kuyruğu kanal açma makinası 3
