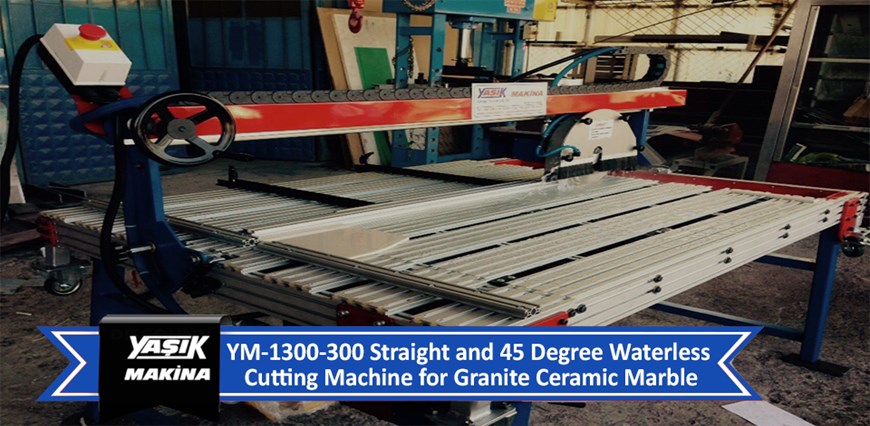

YM-1300-300 Straight and 45 Degree Waterless Cutting Machine for Granite Ceramic Marble

YM-1300-300 Straight and 45 Degree Waterless Cutting Machine for Granite Ceramic Marble

Technical specifications

Granite, Ceramic, marble, natural stone, brick, fibercement, sinterfleks and so on. For products Watery cutting machine (side cutting)

Can work with 220 volts.

Machine Type: YM 1300-300 2.2kW / 220V

Machine Dimensions LxWxH: 1950mmx1100mmx850mm (with raised legs folded)

Straight cut size: 1300mm

Flat cutting Thickness: 75mm

45 ° Angle cut length: 1300mm

45 ° Angled cutting Thickness: 35mm

Cutting Motor Power: 2.2 Kw / 3HP 2800rpm / minute

Water Pump: 0,37 Kw / 220v

Cutting Progress: Operator adjustable by manual wheel according to material hardness and thickness

Water system: continuous water circulation with the water collection reservoir

 Disc cooling: longer cutter life thanks to the diamond cutter disc cooling system with plenty of water

Rail system: Since the machine is hardened by induction and chrome plated, it gives very long and precise rust-free operation.

Cutting disc: Diameter 300mm Core diameter 60mm Diamond disc cutter.

Portability: practical Easy to carry thanks to foldable long feet and small wheels

Motor protection switch start and Emergency stop buttons to prevent engine burning

Special filter system to prevent sediment in water motor

Stainless steel disc protection

45 ° angled cutting

Aluminum strong and light chassis

100% domestic production.

Fast supply of all kinds of spare parts

Next to all our machines

1 piece Diameter 300mm quality diamond cutter disk.

For the machine The tool kit with all the key sets required

1 artificial leather working apron is given as a gift
