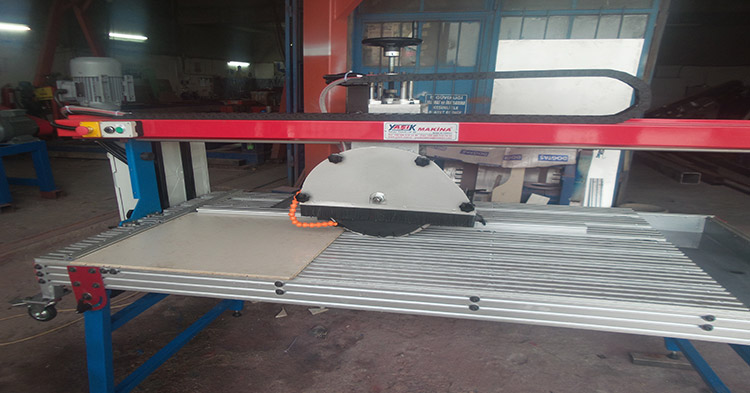

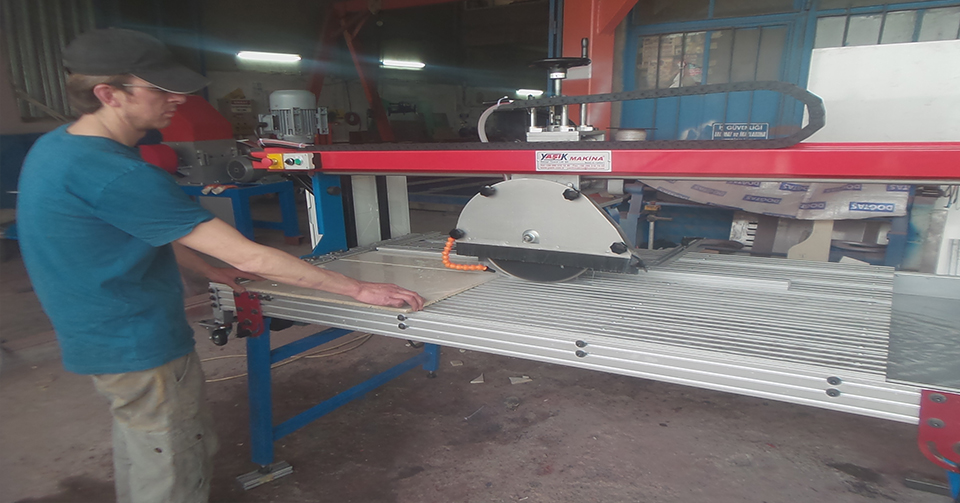

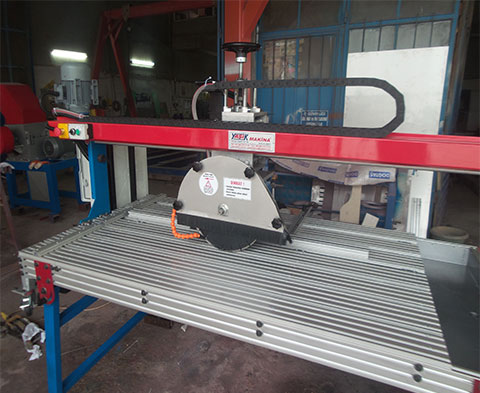

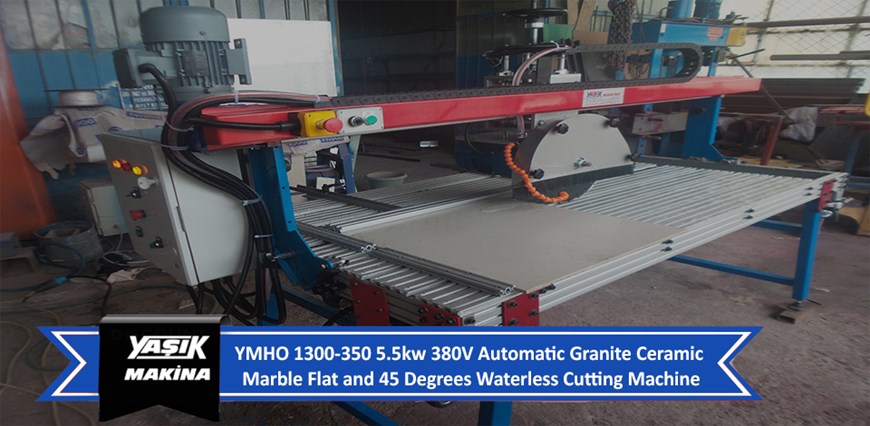

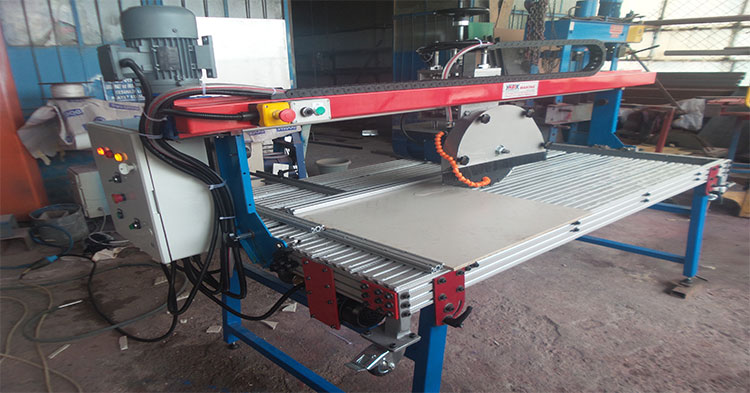

YMHO 1300-350 5.5kw 380V Automatic Granite Ceramic Marble Flat and 45 Degrees Waterless Cutting Mach

YMHO 1300-350 5.5kw 380V Automatic Granite Ceramic Marble Flat and 45 Degrees Waterless Cutting Mach

Technical specifications

Granite, Ceramic, marble, natural stone, brick, fibercement and so on. For products Watery cutting machine (side cutting)

Can work with 380 volts.

Machine Type: YMHO 1300-350 5.5kW / 380V automatic

AUTOMATIC cuts according to other types. The engine is stronger. up and down movement system. Thus, a 350 mm or 300 mm disc can be installed or the channel can be opened without cutting on the part.

Machine Dimensions LxWxH: 1950mmx1100mmx1000mm (with feet folded)

Straight cut size: 1300mm

Flat cutting Thickness: 100mm

45 ° Angle cut length: 1300mm

45 ° Angled Cutting Thickness: 55mm

Cutting Motor Power: 5.5 Kw 2800rpm / min 380 V

Water Pump: 0,37 Kw / 220v

Reduction gear motor: 0.37kW / 380V

Cutting Progress: automatic speed adjustable inverter control. The operator can adjust the cutting speed according to the material stiffness and thickness.

Water system: continuous water circulation with the water collection reservoir

 Disc cooling: longer cutter life thanks to the diamond cutter disc cooling system with plenty of water

Rail system: Since the machine is hardened by induction and chrome plated, it gives very long and precise rust-free operation.

Cutting disc: Diameter 300mm to diameter 350mm Core diameter 60mm Diamond disc cutter.

Portability: practical Easy to carry thanks to foldable long feet and small wheels

The machine automatically cuts the part at the set speed when the start button is pressed, and then returns back to the machine's max feed speed after the cutting operation is finished.

Motor protection switch start and Emergency stop buttons to prevent engine burning

Special filter system to prevent sediment in water motor

Stainless steel disc protection

45 ° angled cutting

Aluminum strong and light chassis

100% domestic production.

Fast supply of all kinds of spare parts

Next to all our machines

1 piece Diameter 300mm quality diamond cutter disk.

For the machine The tool kit with all the key sets required

1 artificial leather working apron is given as a gift

Contact us for detailed information about Machinery and Spare Parts!
